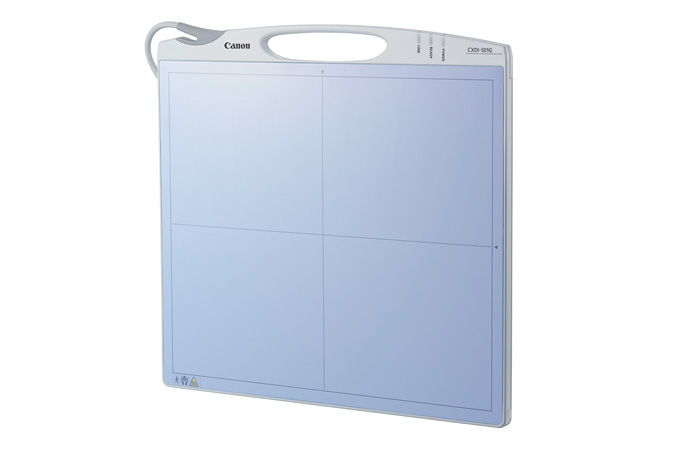

CXDI-501G Digital Radiography System


The CXDI-501G Digital Radiography (DR) Systems offer high diagnostic quality with 125 micron pixel pitch, resulting in high resolution. The Digital Radiography scope expands with high resolution quality, high sensitivity and high signal to noise performance. By eliminating cassette handling and providing image preview 3 seconds after exposure, more time can be available to concentrate on critical tasks. Configurations are available for upright stands, U-arm stands, Bucky tables or retrofit solutions.

Image Area: 14 in. x 17 in.
Weight: 6.8 lbs
Image Matrix Size: 2,800 x 3,408 (9.5 megapixels)
Pixel Pitch: 125 microns
A/D: 14-bit
Grayscale Output: 4,096 (12-bit)
