CXDI-401C COMPACT
Digital Detectors
CXDI Wired Detector

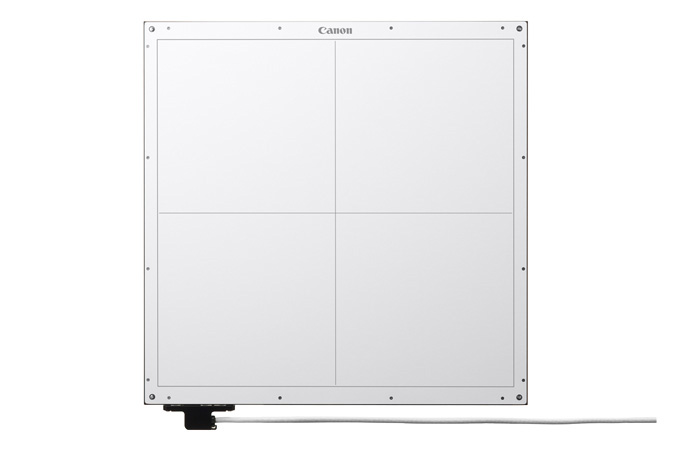

CXDI-401C COMPACT Digital Radiography System
The CXDI-401C COMPACT Digital Radiography Systems feature a 125 micron pixel pitch resulting in high resolution and allows for easy upgrades to existing radiography equipment. These systems also fit easily into most universal Bucky systems. This unit can be retrofitted into a range of radiography devices, such as upright stands and tables.
Image Area: Approx. 416 mm x 427 mm (Approx. 17 in. x 17 in.)
Weight: 15.4 lbs
Pixels: 3,320 x 3,408
Pixel Pitch: 125 microns
A/D: 14-bit
Grayscale Output: 4,096 (12-bit)
For more information including quotes, pricing and upgrades, please complete this form.
DISCLAIMERS
Images are simulated.
† † Specifications subject to change without notice.
